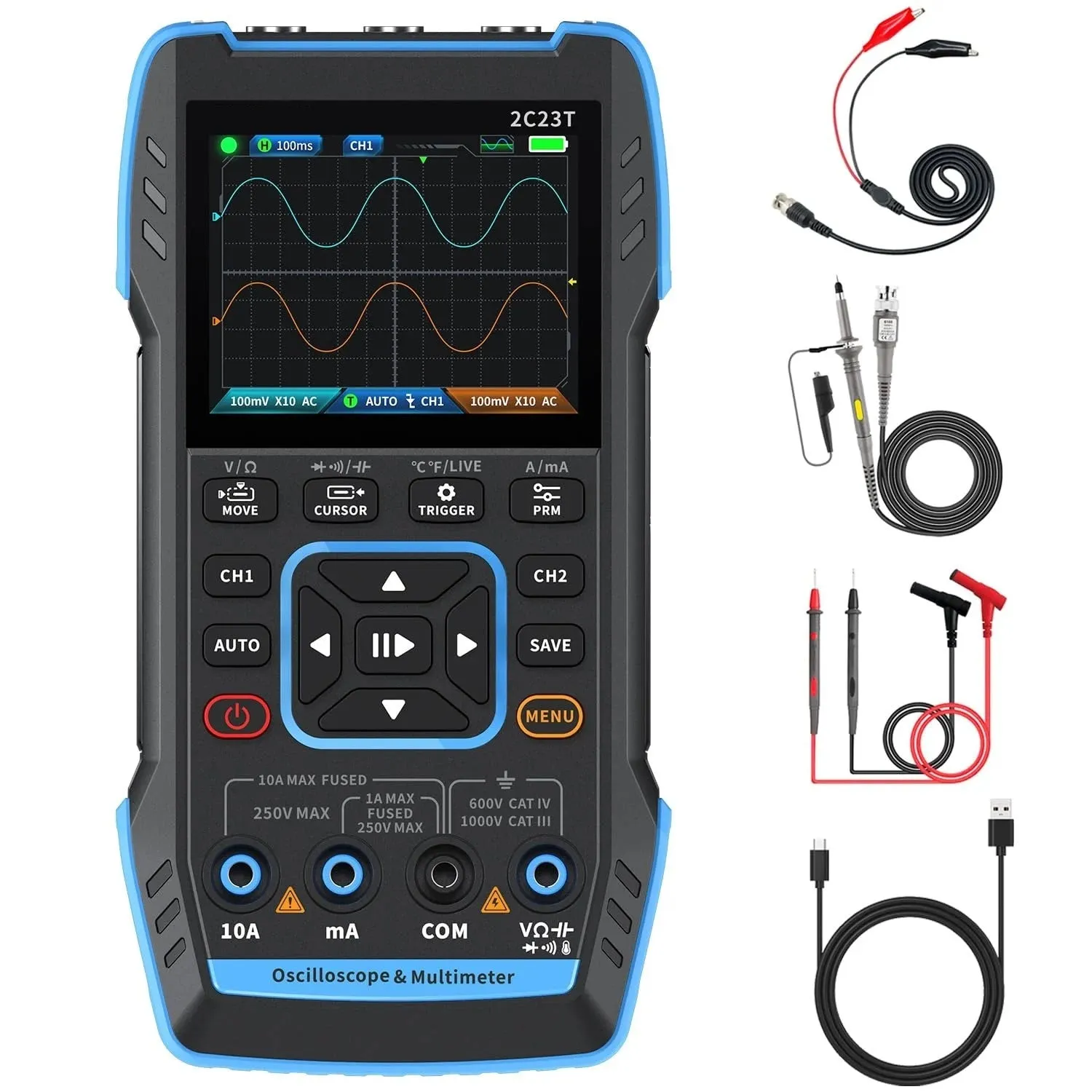

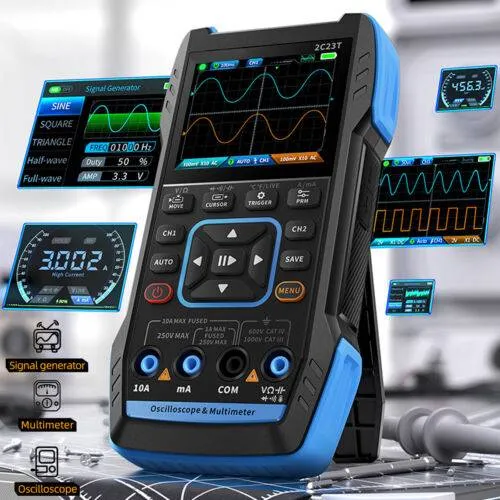

2C23T- 3in1 Handheld Digital Oscilloscope 10Mhz Bandwidth With 2 Channels

1. Oscilloscope Mode-Experience precise waveform analysis with our 2-channel handheld oscilloscope featuring a 10MHz bandwidth, real-time sampling rate of 50MSa/s, and a record depth of 32kb. It boasts a maximum measurement voltage of ±400V and includes automatic measurement and trigger functions for seamless operation. With vertical sensitivity ranging from 200mv/div to 10v/div, you can capture and analyze waveforms with ease. Additionally, this mode supports waveform image storage and export for convenient analysis.

2. Multimeter Mode-Equipped with a 4-digit 10000 count display, our device transforms into a versatile multimeter capable of measuring AC/DC voltage up to 999.9V and 750V respectively. It also accurately measures DC/AC current up to 9.999A, resistance up to 99.99MΩ, capacitance up to 99.99mF, and temperature ranging from -55°C to 1300°C (-67°F to 2372°F). Perfect for professionals, factories, schools, hobbyists, or home use, this multifunction meter offers comprehensive measurement capabilities.

3. Signal Generator-Generate precise waveforms with our signal generator, which supports a maximum waveform output frequency of 2MHz with a step of 1Hz. Choose from seven waveform options, including sine, square, triangle, full, half, noise, and DC, to suit your testing needs.

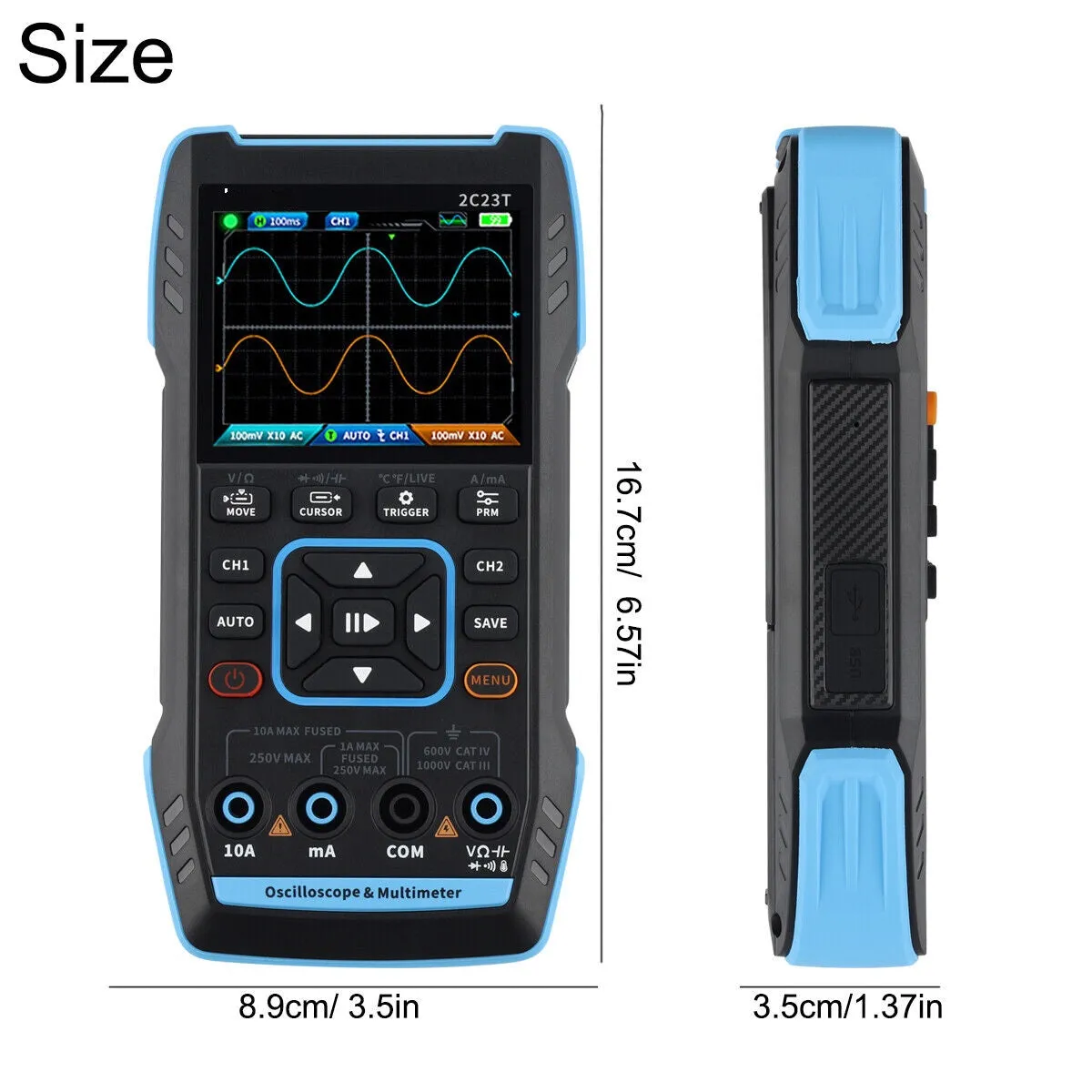

4. Excellent Design-Our oscilloscope features an advanced FPGA MCU ADC hardware architecture and a built-in high-voltage protection module for enhanced durability and safety. The 2.8-inch 320*240 resolution HD LCD delivers clear and detailed waveform visualization. With a built-in 3000mAh rechargeable Li-ion battery, enjoy up to 6 hours of standby time, and conveniently recharge via the Type-C interface, which supports 5V/1A power adapter charging.

5. Save Function-Effortlessly save waveforms with a single click and utilize the screening function for easy waveform comparison. Connect to your PC via Type-C to upload saved images and compare reference and measured waveforms on the same screen with ease.
